Eight Port Multi Purpose Rotary Joints
Eight Passage Rotary Joints To Handle Various Media Like Cooling Oil, Hydraulic Oil, And Air. Get Customise Solution For Your Work Piece, Spindle Cooling, Or Air Cleaning Application
The Type-MSJ81 is Multi Port Rotary unions with precise functionality. Two or more media can run simultaneously without mixing. Multi Port Rotary joints are manufactured using quality assured raw material and progressive technology in compliance with international standards. Keeping in mind the detailed specifications of our clients, we provide these rotary unions to our clients with several specifications.

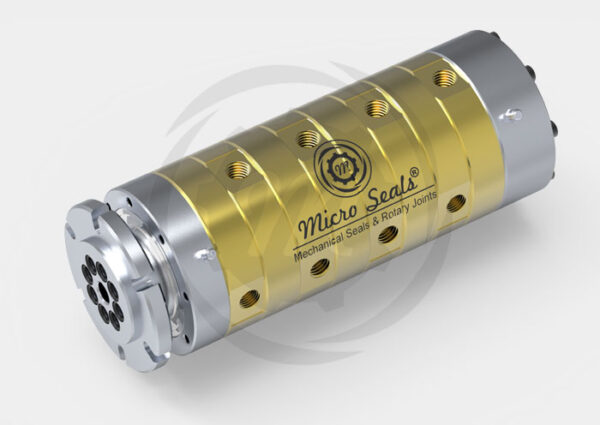

Eight passages Rotary joints for high pressure and low speed application

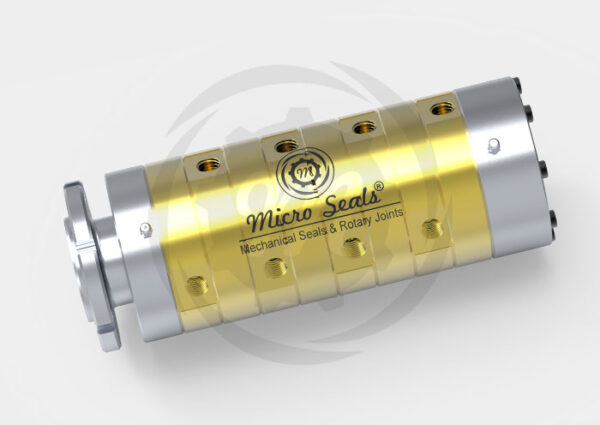

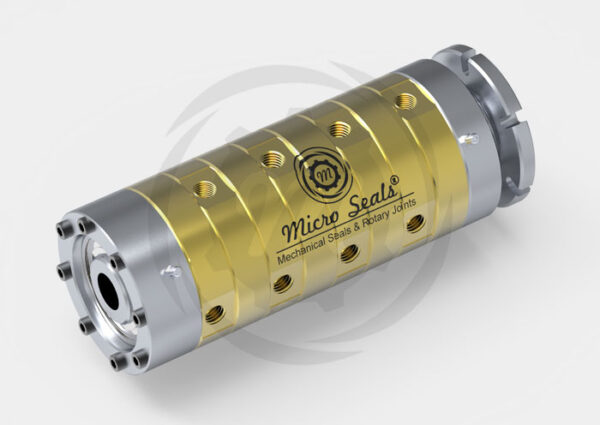

MSJ81-8P Eight Rotary Joints
- Eight port flow design with different or same media with varying pressure
- Rotating union is self-supported
- Axial housing connection
- Hardened Sealing surfaces
- Special Seals
- Ball bearings lubricated for life
- Low or high torque and weight optimised design
- Aluminum or Stainless steel housing; stainless steel or carbon steel rotor, depending on model
| Elastomer | Viton, EPDM, NBR, |
| Bearing | Composite Bronze Bearing, Ball Bearing |
| MOC | SS 316, Carbon Steel, Aluminium |
| Size | 1/8″ (DN06) – 3/4″ (DN40) |
| Media | : Air, Vacuum, Hydraulic oil, brake fluid |
| Max. Air Pressure | : 10 bar |
| Max. Vacuum | : 7 kPa |
| Max. Hydraulic Pressure | : 210 bar |
| Max. Brake fluid Pressure | : 207 bar |
| Max. Temperature | : 120°C |
| Max. Speed | : 250 rpm |
Do not work with max. pressure at max. speed.
Very High pressure is obtained with SS 316 MOC.
- Oil and Gas
- Plastics
- Agriculture and Construction
- Food and Medical
- Chemical
- Hydro power
- Printing and Packaging
- Tire and Rubber
“Deublin” 1379/1479 series
“Kadant” MP series
“Rototech” M series
“Rotofluid” 10 series
“Rotoflux” M series
“Maier” MP series
“Haag-zeissler” MRF series
“DSTI” GP series
Duffnorton” MPMC/MSMC series
