Elastomer Bellow Mechanical Seals
MSRB-12/13 Mechanical Seal for Centrifugal Pumps, Chemical Process Pump and Circulating Pumps
We are involved in offering patrons an extensive of “Self Priming Pumps” Manufacturer In India, that are available in various order to cater to all the variegated demands of our esteemed clients, we have prominent manufacturer, exporter and supplier of a huge gamut of Stainless Steel Self Priming Pump. We fabricate and provide the wide range of high quality elastomer bellow seals for the various industrial applications It’s the wear type of seal and is providing a high degree of axial flexibility. It compensates the lack of concentricity of the shaft. Elastomer bellow seals also compensates the alignment of the shaft.
Elastomer Spring Mechanical Seals
Elastomer Bellow Seals has been designed for general sealing purpose which includes easy installation of the seal.
Elastomer Spring seals used for water and sewage containing slurries. Shaft run out is compensated by Elastomer bellow and spring due to its self aligning capability.Elastomer Bellow protect Shaft/Sleeve from Fretting.
Elastomer Bellow Mechanical seals has single coil spring & due to which seal will not clogged in Effluent containing particles.
- Single seal
- Cartridge Unit
- Balanced Seal
- Independent of direction of rotation
- Multiple Spring arrangement
- Stationary Spring
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/Graphite |
| Metal Parts | : SS 316, |
| Pressure | : up to 15 bars |
| Temperature | : (-)50c to (+)350c |
| Speed | : up to 25 m/s |
| Size | : 19 mm to 100 mm |
Generally used for handling highly corrosive chemicals, high temperature applications and Hydrocarbons In Petrochemical industry, petroleum refinery , Paper & Pulp industry

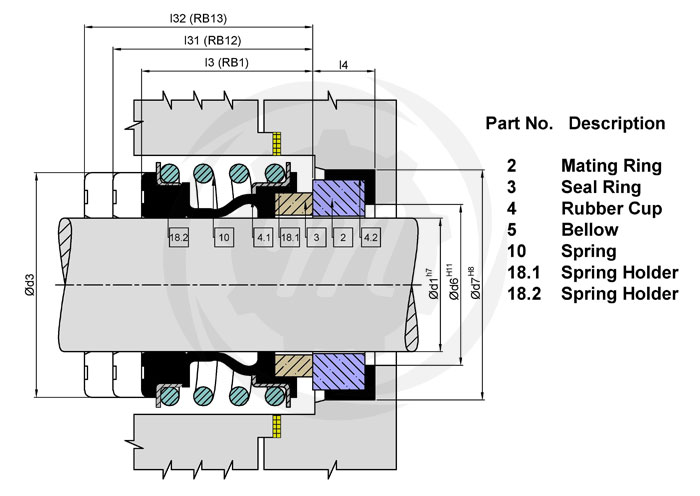

| Item No | Description |
|---|---|
| 2 | Mating Ring |
| 3 | Seal Ring |
| 4 | Rubber Cup |
| 5 | Bellow |
| 10 | Spring |
| 18.1 | Spring Holder |
| 18.2 | Spring Holder |
