HIGH PRESSURE MECHANICAL SEALS
SC49D API 682 High Pressure Double Cartridge Seal For Booster Pumps, Hydrocarbon Process Centrifugal Pumps and Crude Oil Pump
High Pressure Dual Cartridge Seal is specifically designed to handle demanding, high torque applications, like hot water, crude oil, light hydrocarbons. These seal are provided with single, double or tandem arrangement, which are widely used for applications such as boiler feed water pumps, main crude oil transportation pump and multi-phase pumps. It allows easy repair due to interchangeability of parts and thus decrease inventory, and permit a simple conversion to unbalanced or wedge seals. Its sturdy designed and drive arrangement makes the seal suitable for high pressure applications. Multiple spring designed provides uniform face loading.
Dual Cartridge Mechanical seals
High Pressure Seals specifically designed to handle demanding, high torque applications. High Pressure Mechanical Seal has positive drive arrangement and sturdy construction making the seal suitable for high pressure application. Multiple spring design provides uniform face loading.
The seal is supplied as a cartridge unit and can be directly bolted to stuffing box.
High Pressure Dual Cartridge Seals is Designed for medium to high pressure application. These seals are factory assembled with cartridge unit & therefore can be easily installed without disturbing the delicate mating faces.
- Double Seal
- Semi-Cartridge design
- Optimized Balanced seal
- Independent of direction of rotation
- Multiple Stationary Springs
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton / PTFE / GFT |
| Metal Parts | : SS 316, Alloy 20, |
| Pressure | : 15 bars (Max) |
| Temperature | : (-)50c to (+)180c |
| Speed | : 2500 rpm (Max) |
| Size | : 25 mm to 150 mm |
High pressure pumps, refineries, fertilizers, nuclear plants and petroleum products.

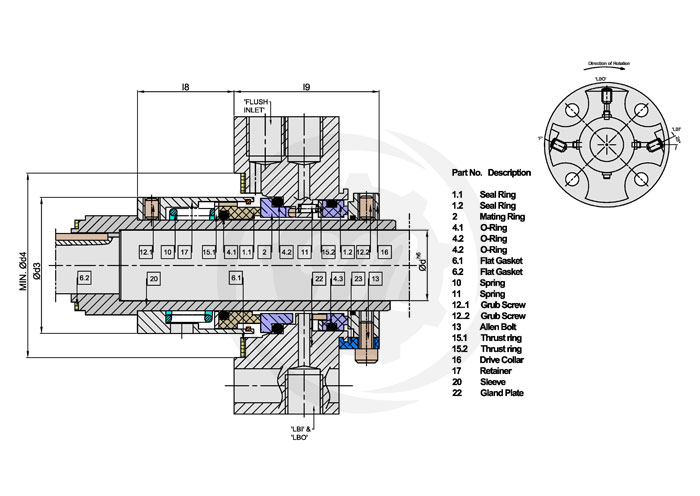

| Item No | Description |
|---|---|
| 1.1 | Seal Ring |
| 1.2 | Seal Ring |
| 2 | Mating Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 4.3 | O-Ring |
| 6.1 | Flat Gasket |
| 6.2 | Flat Gasket |
| 10 | Spring |
| 11 | Spring |
| 12.1 | Grub Screw |
| 12.2 | Grub Screw |
| 13 | Alien Bolt |
| 15.1 | Thrust RIng |
| 15.2 | Thrust RIng |
| 16 | Drive Coller |
| 17 | Retainer |
| 20 | Sleeve |
| 22 | Gland Plate |
