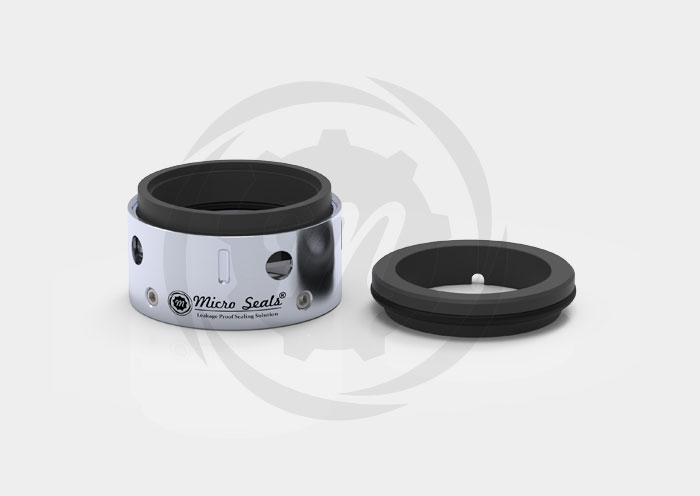

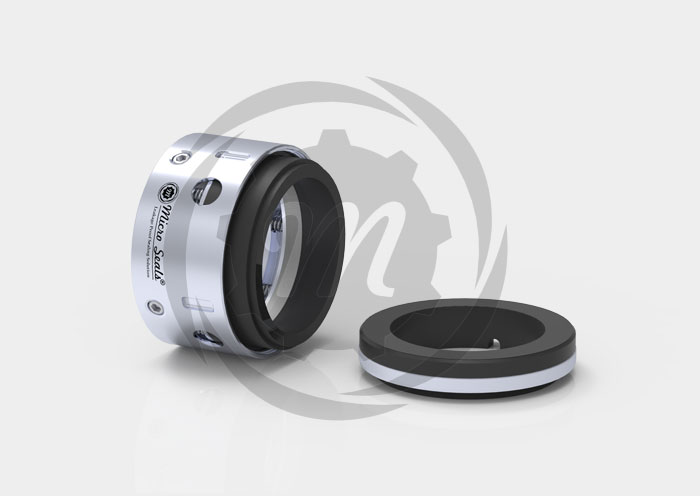

MULTI SPRING BALANCED MECHANICAL SEALS
033B/W34B Balanced Multi-Spring Mechanical Seals For Chemical Centrifugal Pumps, Boiler Feed Pumps and Process Pumps
We are a highly esteemed General Purpose Multi Spring Balanced Seal. Their Compact Design permits their use in all types of Centrifugal Pumps. Multi Spring Balanced seal are designed as its name express, the number of spring in its peripheral. Due to very evenly spread of spring compression on the face of mechanical seal, the load will act very much even throughout the size of seal, which will lead very less wear, and help for higher life.
Balanced Spring Mechanical Seals
Multi Spring Balance Seals are pusher type balance multiple spring mechanical seals generally used when high pressure sealing required.
Balanced Spring seals are compact in design suiting all types of rotating equipment’s – pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve
Multi Spring Balanced Mechanical Seals can be provided with single, double, or tandem arrangement with external seals support systems and devices.The bellow faces are interchangeable and replaceable.
- Multiple Spring Mechanical Seal
- For Plain shaft
- Single acting
- Balanced
- inside mounted
- Independent of direction of rotation.
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Elastomer/PTFE/GFT |
| Metal Parts | : SS 316,Hastellcy 904L,Alloy |
| Pressure | : 30 bars (Max) |
| Temperature | : (-)20c to (+)220c |
| Speed | : 2900 rpm (Max) |
| Size | : 12 mm to 100 mm |
Chemical industry Acid pumps Corrosive chemical pumps High pressure pumps

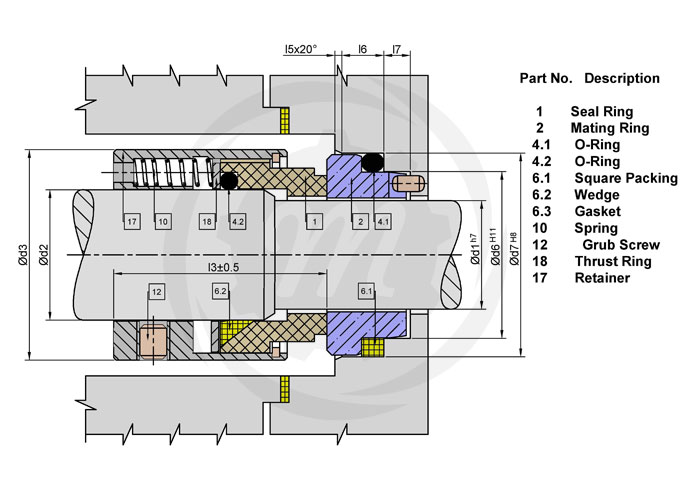

| Item No | Description |
|---|---|
| 1 | Seal Ring |
| 2 | Mating Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 6.1 | Square Packing |
| 6.2 | Wedge |
| 6.3 | Gasket |
| 10 | Spring |
| 12 | Grub Screw |
| 18 | Thrust Ring |
| 17 | Retainer |
