SINGLE CARTRIDGE MECHANICAL SEALS

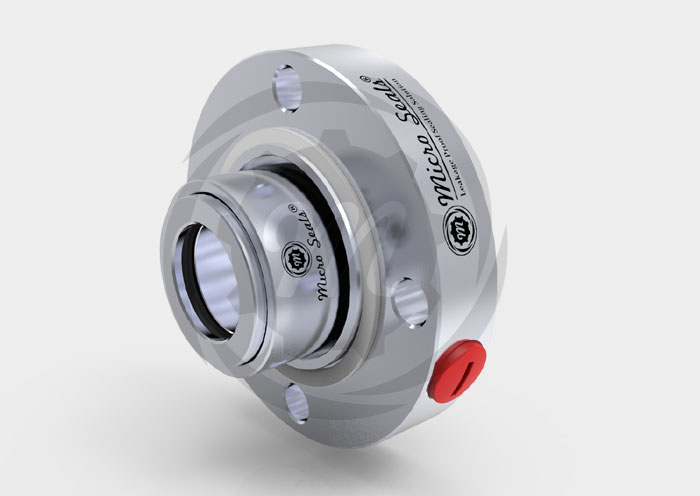

CS41 O-Ring Pusher Type Single Cartridge Seals For Close-Coupled Pumps, Vertical Pumps, Mixer And Agitators and Other Rotating Equipment.
We provide our range in readymade unit, which is easy for installation with saving of time. These Cartridge Mechanical Seal are ready to install on any type of clear liquids. Such seal do not require adjustment in fitting due to factory pre-assembly hence avoid installation problem. The seals we offer are used as absolute leak proof sealing and effective against toxic, hazardous and volatile fluids. Known for their unmatched quality, chemical resistance and uniform shaft diameter, these seals are demanded in food, chemical and petrochemical industries.
SINGLE CARTRIDGE MECHANICAL SEALS
Single Cartridge Seals a cartridge unit specially design for slurry applications and consist single seal assembly, mating ring, gland, sleeve, etc., which is pre-assembled and preset by the manufacturer prior to installation.
Cartridge Mechanical Seals are special purpose Multi Spring Balanced Seals designed for use in media containing abrasive or solid particles.
Cartridge Seals have good demand in sealing of rotating equipment’s. The seal faces are protected from damage and contamination from dirt and foreign particles .in cartridge unit Spring is completely isolated from the product.
- Single Seal
- Semi-Cartridge design
- Optimized Balanced seal
- Independent of direction of rotation
- Multiple Stationary Springs
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton / PTFE / GFT/FFKM |
| Metal Parts | : SS 3’16, 904 L. Alloy 20 |
| Pressure | : Up to 15 bars |
| Temperature | : (-)80c to (+)180c |
| Speed | : Up to 25 m/s |
| Size | : 25 mm to 150 mm |
Sludge & Syrup pump Paper Industries. Petrochemical’s. Petroleum Refinery.

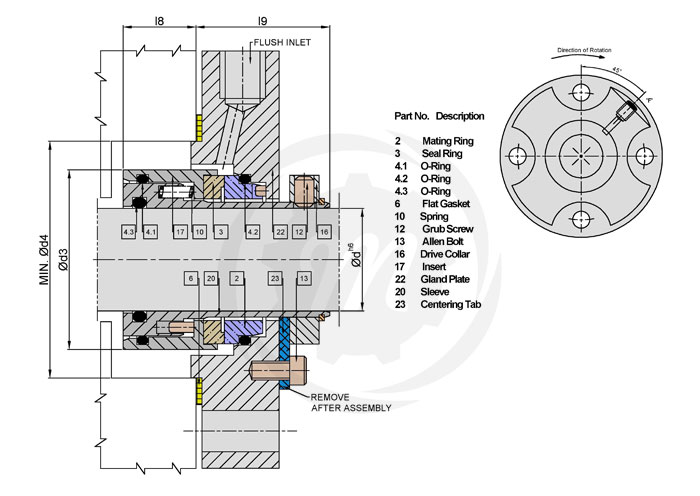

| Item No | Description |
|---|---|
| 2 | Mating Ring |
| 3 | Seal Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 4.3 | O-Ring |
| 6 | Flat Gasket |
| 10 | Spring |
| 12 | Grub Screw |
| 13 | Alien Bolt |
| 16 | Drive Coller |
| 17 | Insert |
| 22 | Gland Plate |
| 20 | Sleeve |
| 23 | Centering Tab |
