Thermal Oil and Steam Rotary Joints For High Pressure Service
High Pressure Thermal Oil Rotary Joints For transmission Of Pressurized Media In Applications Like Paper and Textile Drying Cylinders, Rubber Mills and Calendars

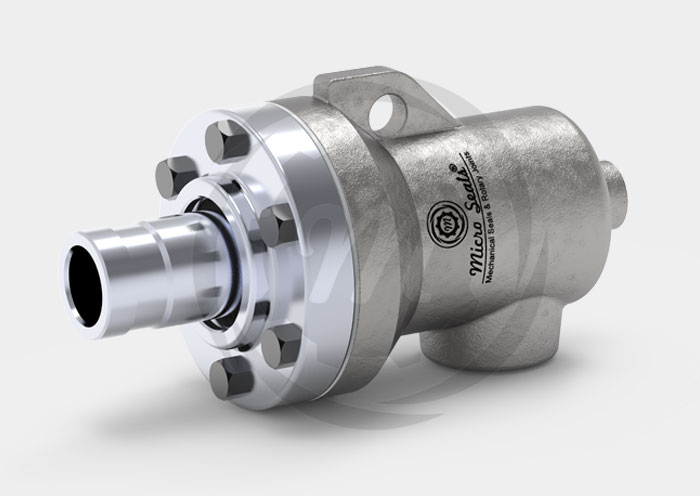

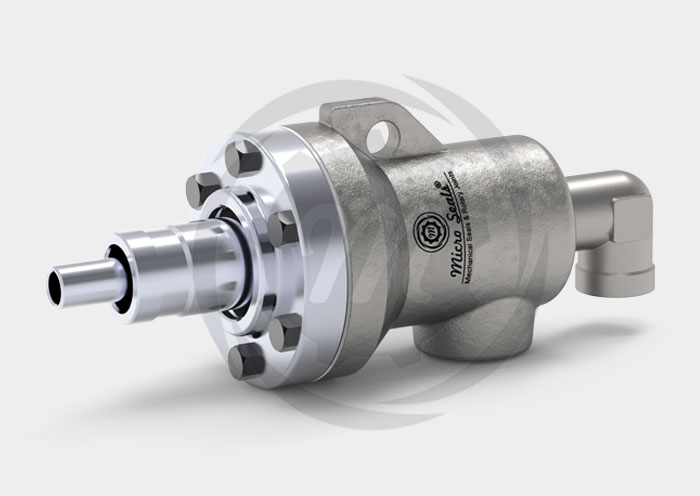

The Type-MSJ31A is high temperature rotary joint for media Hot Oil. The steel rotor supported on extra long Carbon graphite bush bearings ensures larger bearing area enabling the rotary union to function trouble free for long durations without lubrication. With provision for siphon pipe, these are used in mono flow as well as dual flow applications. This equipment is manufactured using premium raw material
Thermal Oil and Steam Rotary Joints For High Pressure Service
Single Passage Rotary Joints for Heat Transfer Fluids
MSJ31A Rotary Joints
- Monoflow and dualflow design
- Self-supported rotating union
- Radial or Axial housing connection
- Balanced mechanical seals
- Easy and quick replacement of sealing components
- E.L.S. (Extended Life Service) seal combination for poor water quality
- Carbon Steel, Stainless Steel housing and stainless steel rotor
- Contacted parts made of 316 stainless steel
- Full media flow
| Bush Bearing | : Carbon Graphite |
| Elastomers | : Klinger, Graphoil, GFT |
| Sealing Faces | : Antimony Carbon, Resin Bonded Carbon |
| MOC | : SS 316, Carbon Steel, C.I (Nickel Plated) |
| Size | : 1/2″ (DN15) – 6″ (DN150) |
| Media | : Hot Water, Steam, Hot Oil |
| Max. Pressure | : 17 bar |
| Max. Temperature | : 280°C |
| Max. Speed | : 750 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.
- Oil And Gas
- Paper And Corrugating
- Printing And Packaging
- Plastics
- Tire And Rubber
“Rototech” 4000, 4000HOseries
“Deublin” N,H,HPS,9000series
“Rotofluid” 200/200HO series
“Rotoflux” G series
“Fourwent” FMU 9100 series
“Maier” H series
“Johnson” Z series
“Kadant” SX series
“Duffnorton” 8000 series
